Medium Voltage Cables

Medium Voltage Cables

Jeddah Cables Company offers a versatile range of Medium Voltage (MV) power cables with nominal system voltage ratings from 3.6kV to 36kV. Available in single-core cables with cross-sectional areas up to 1,000mm² and multi-core cables up to 500mm², construct with XLPE insulation/jacketing. Our MV cables are designed to supply electricity to commercial and residential buildings, as well as industrial distribution circuits. Suitable for indoor applications (such as power supply stations) and outdoor environments (including cable ducts, underground installations, and industrial cable trays), these cables meet rigorous national and international standards for quality and safety, ensuring reliable power distribution across diverse settings. All our MV cables are KEMA type tested and complies with IEC standards.

Category

Medium Voltage Cables

Tags

Cables, Medium Voltage Cables

Specification:

Specifications will go here

Conductor:

Soft annealed stranded circular copper conductor

Insulation:

Extruded layer of Cross-linked Polyethylene XLPE

Metallic Sheathing:

Metallic Sheathing details will go here

Outer Sheathing:

Outer Sheathing will go here

Overview:

Detailed product description will go here.

Products

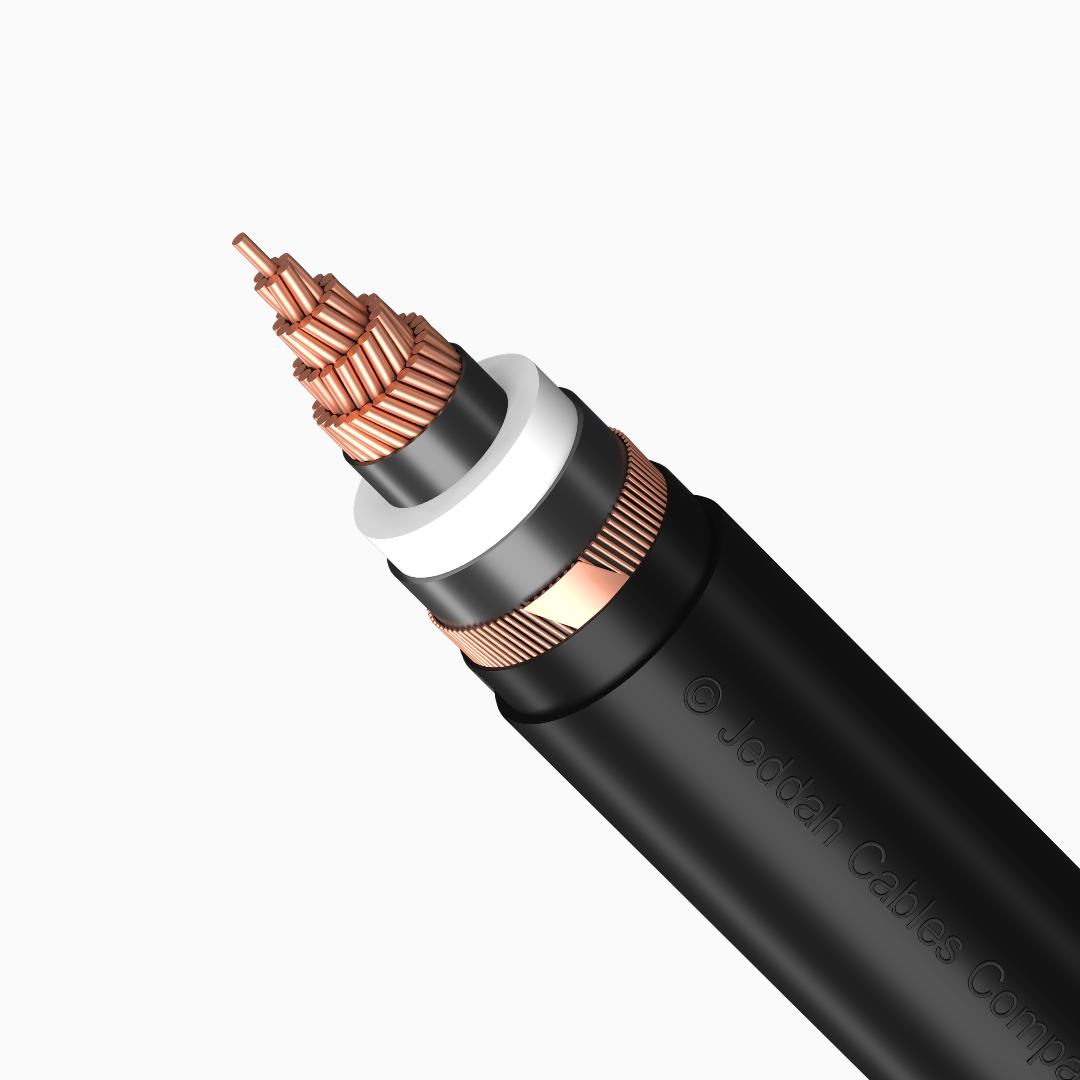

Single Core – Unarmoured

Type:

Copper/Aluminium

Standard:

IEC 60502-2

Rated Voltage:

3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV

Conductor:

Circular Stranded Compacted as per IEC 60228

Jacket:

PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)

Packing:

Non-Returnable wood drums or Steel Drum

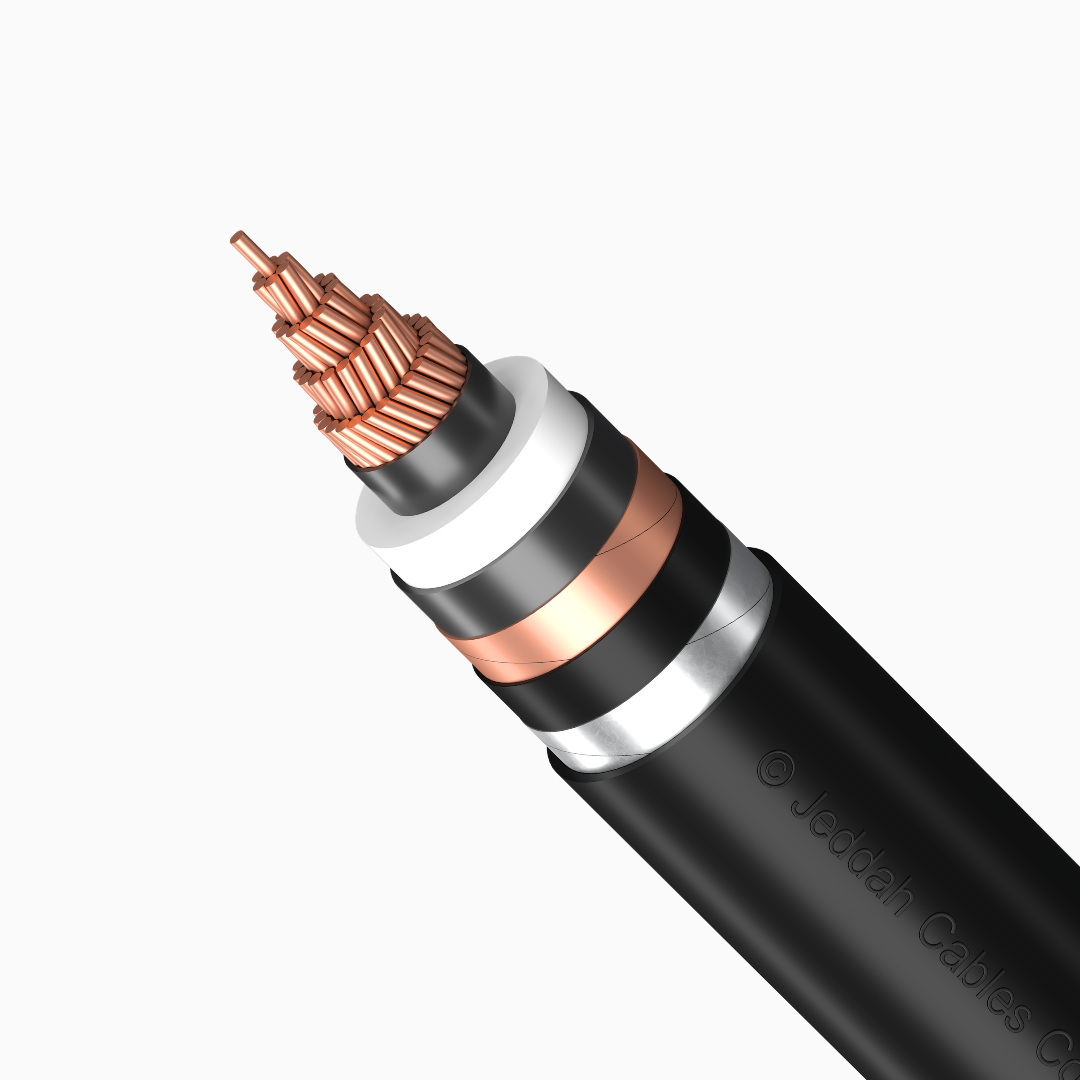

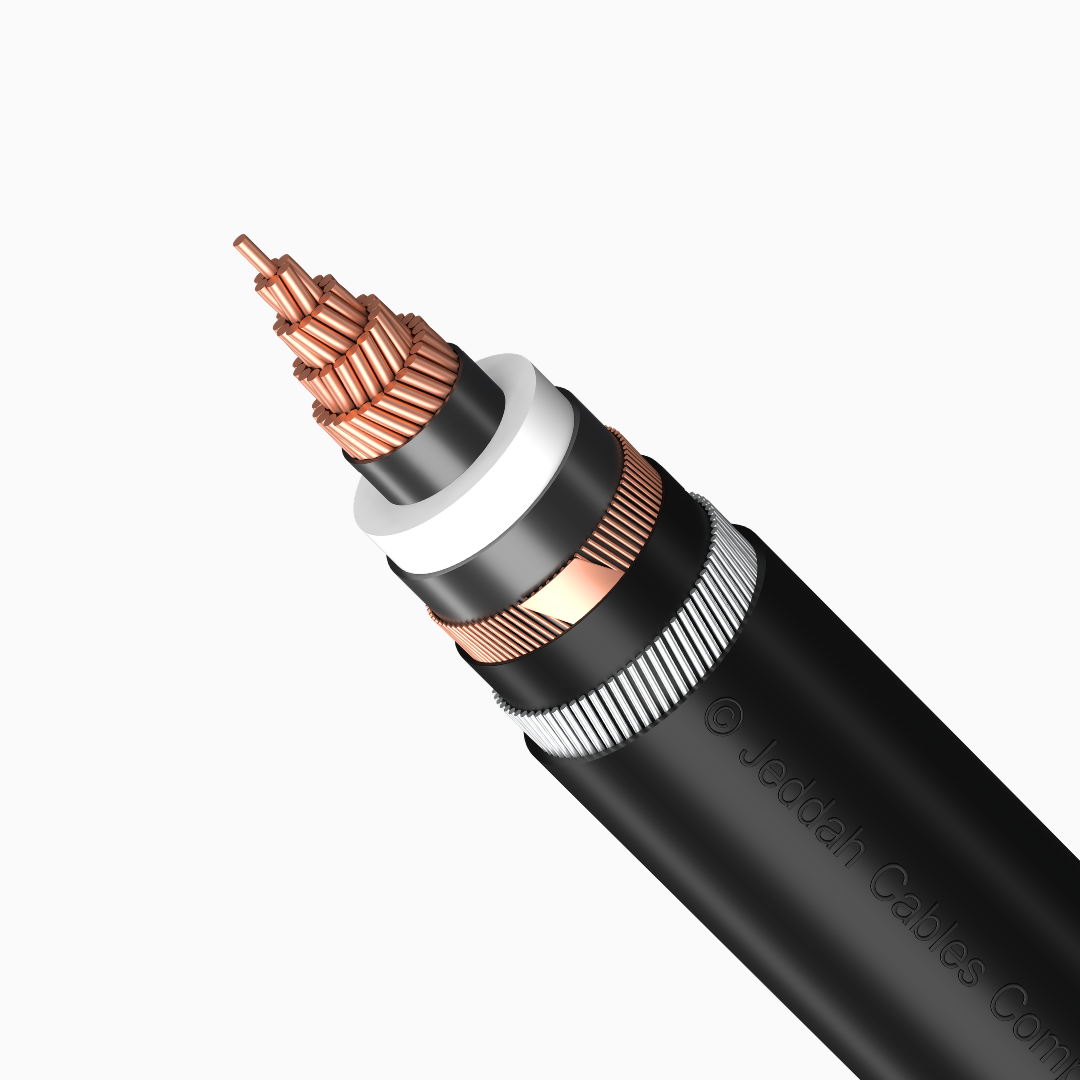

Single Core – Armoured

Type:

Copper/Aluminium

Standard:

IEC 60502-2

Rated Voltage:

3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV

Conductor:

Circular Stranded Compacted as per IEC 60228

Jacket:

PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)

Packing:

Non-Returnable wood drums or Steel Drum

MV Multi-Core-Unarmoured

Type:

Copper/Aluminium

Standard:

IEC 60502-2

Rated Voltage:

3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV

Conductor:

Circular Stranded Compacted as per IEC 60228

Jacket:

PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)

Packing:

Non-Returnable wood drums or Steel Drum

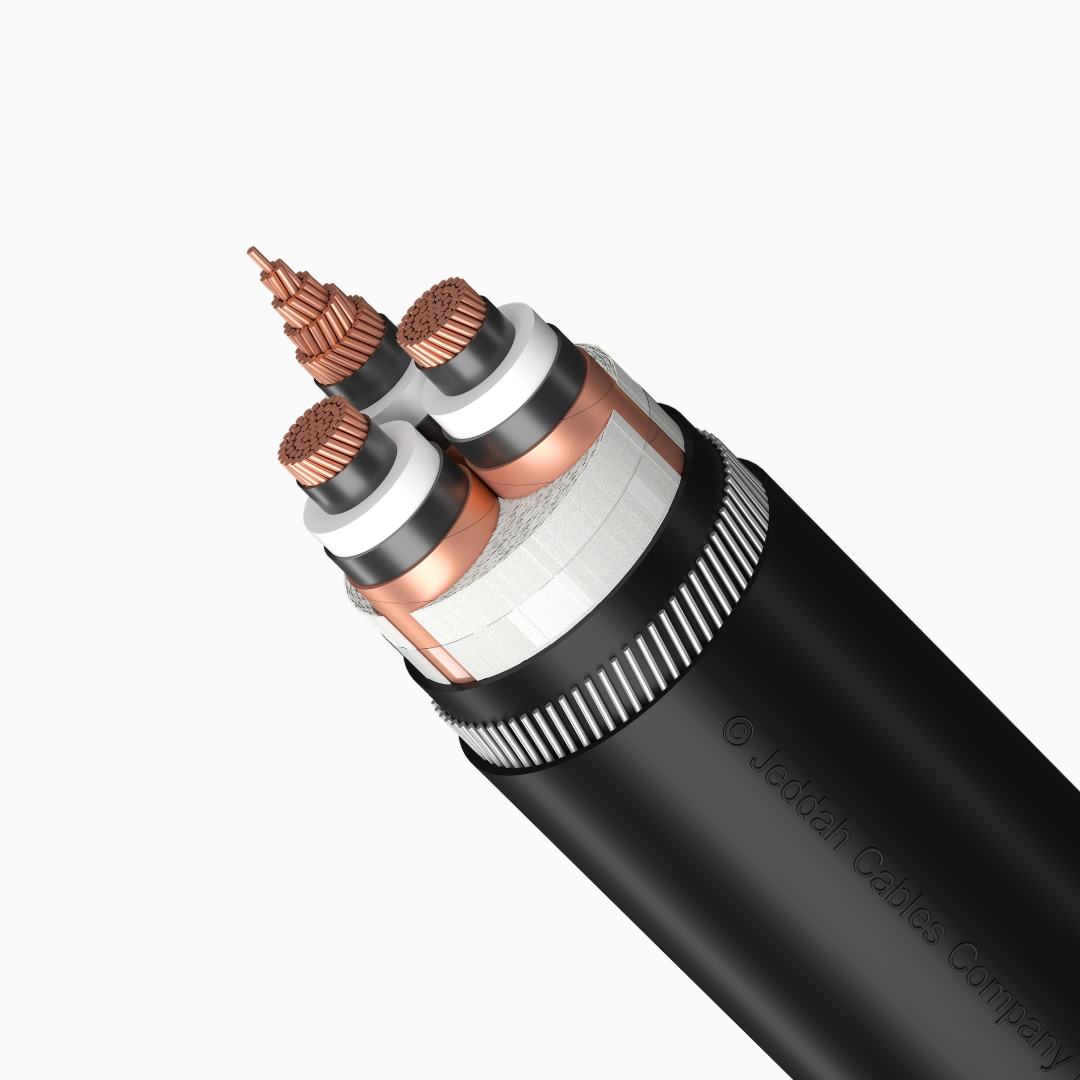

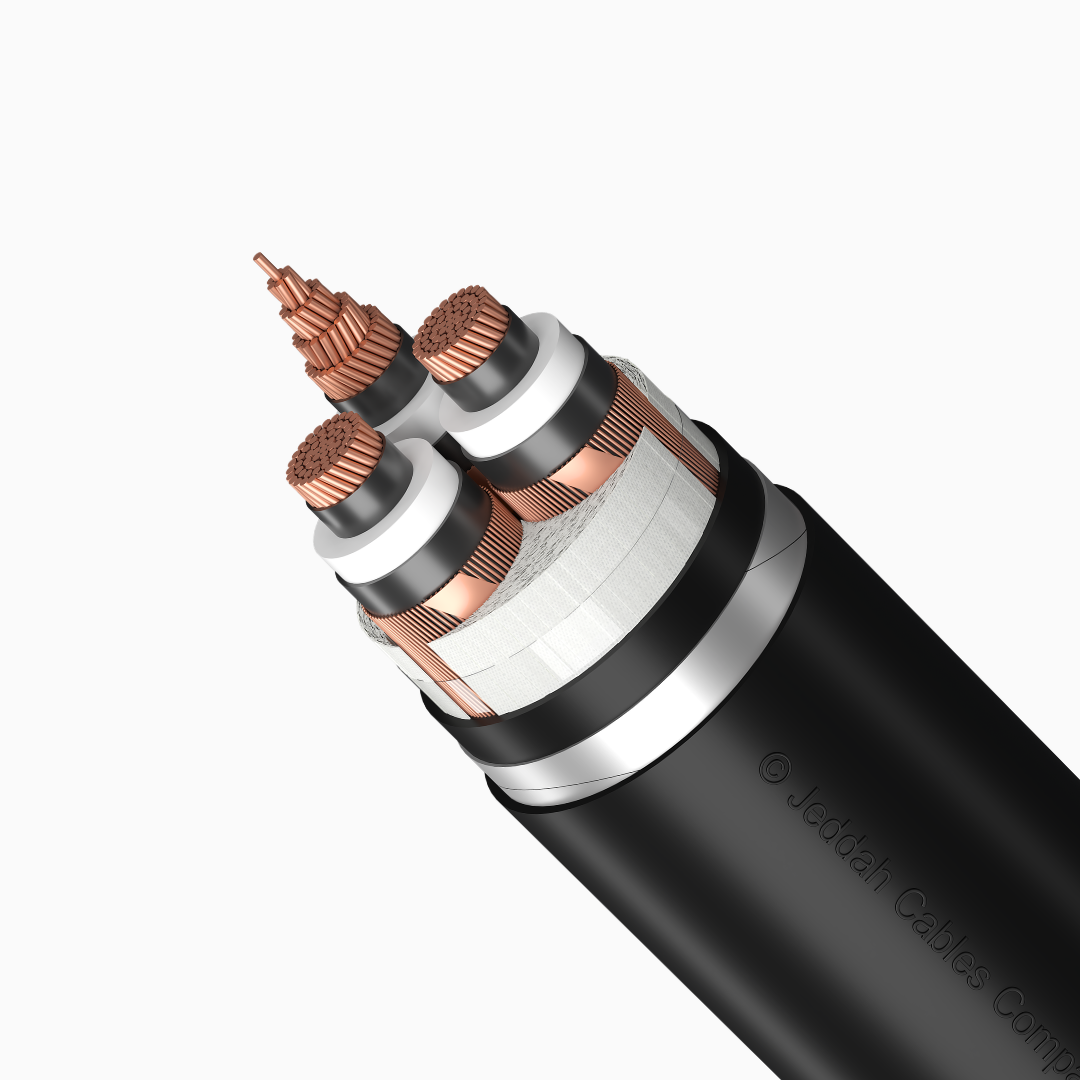

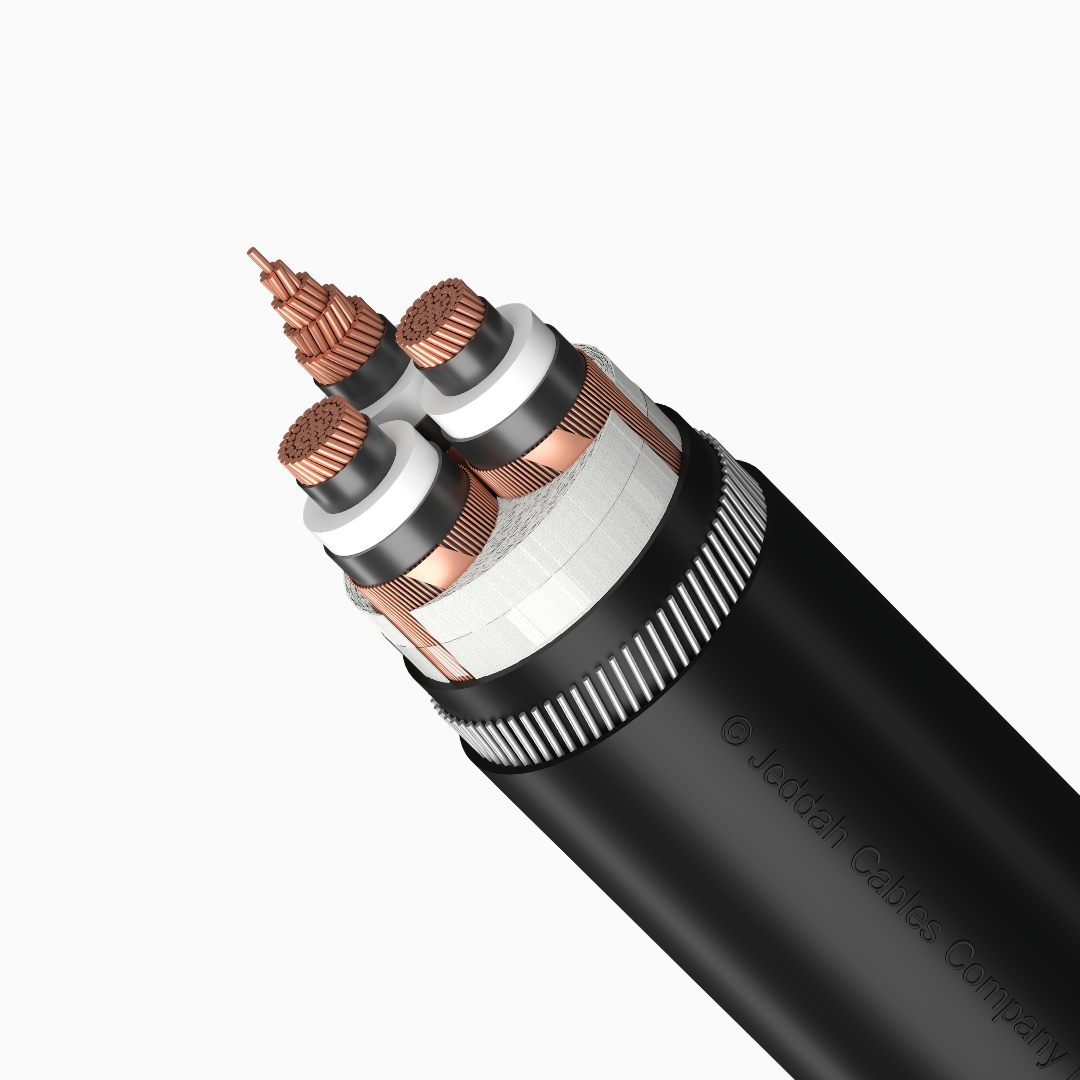

MV Multi-Core- Armoured

Type:

Copper/Aluminium

Standard:

IEC 60502-2

Rated Voltage:

3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV

Conductor:

Circular Stranded Compacted as per IEC 60228

Jacket:

PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)

Packing:

Non-Returnable wood drums or Steel Drum
