High Voltage Cables

High Voltage Cables

Jeddah Cables Company’s High Voltage cables are designed for transmission and distribution networks operating up to 150kV. Built with precision insulation systems and high quality conductors, these cables ensure safe and efficient power transfer across utility and industrial applications. Approved by major regional authorities including Saudi Electricity Company, our HV cables are a trusted choice for grid operators and EPC contractors across the MENA region. JCC’s cables are KEMA type tested and compliant with IEC standards.

Category

High Voltage Cables

Tags

High Voltage Cables

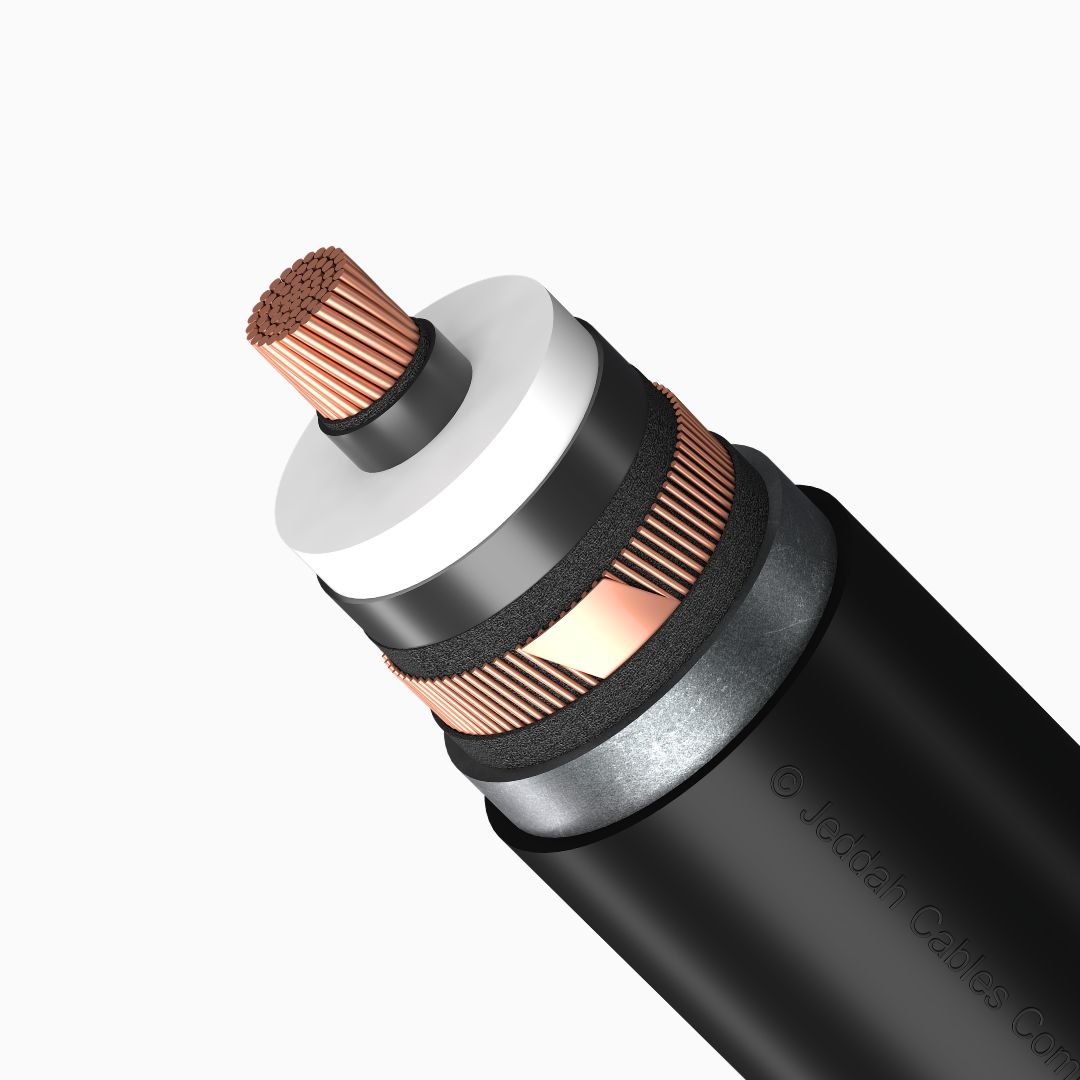

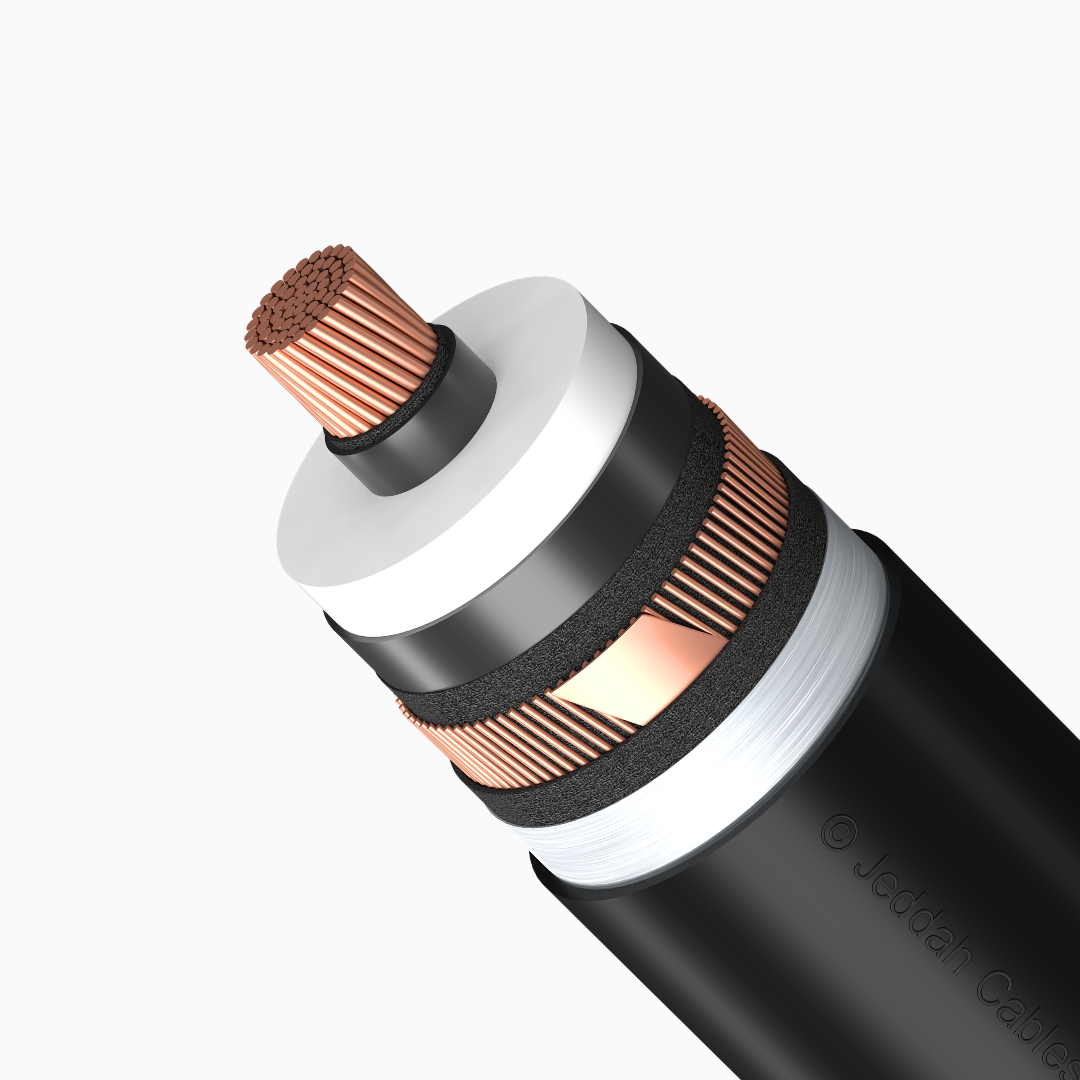

HV Cable — with Metallic Screen

Type:

CU / XLPE / CWS / LEAD / HDPE  OR  CU / XLPE / CWS / LAT / HDPE

Size:

Up to 2500mm²

Rated Voltage:

Up to 500kV

Standard:

IEC 60502-1, BS 6387, IEC 60331-21

Conductor:

Soft Annealed Round Stranded Copper Wires

Insulation:

Cross-Linked Polyethylene XLPE

Screen:

Helically Applied Copper Wire Screen + Open Helix Tape

Metallic Sheath:

Laminated Aluminum Tape OR Lead

Jacketing:

High Density Polyethylene HDPE

Packing:

Returnable OR Non-Returnable Steel Drum

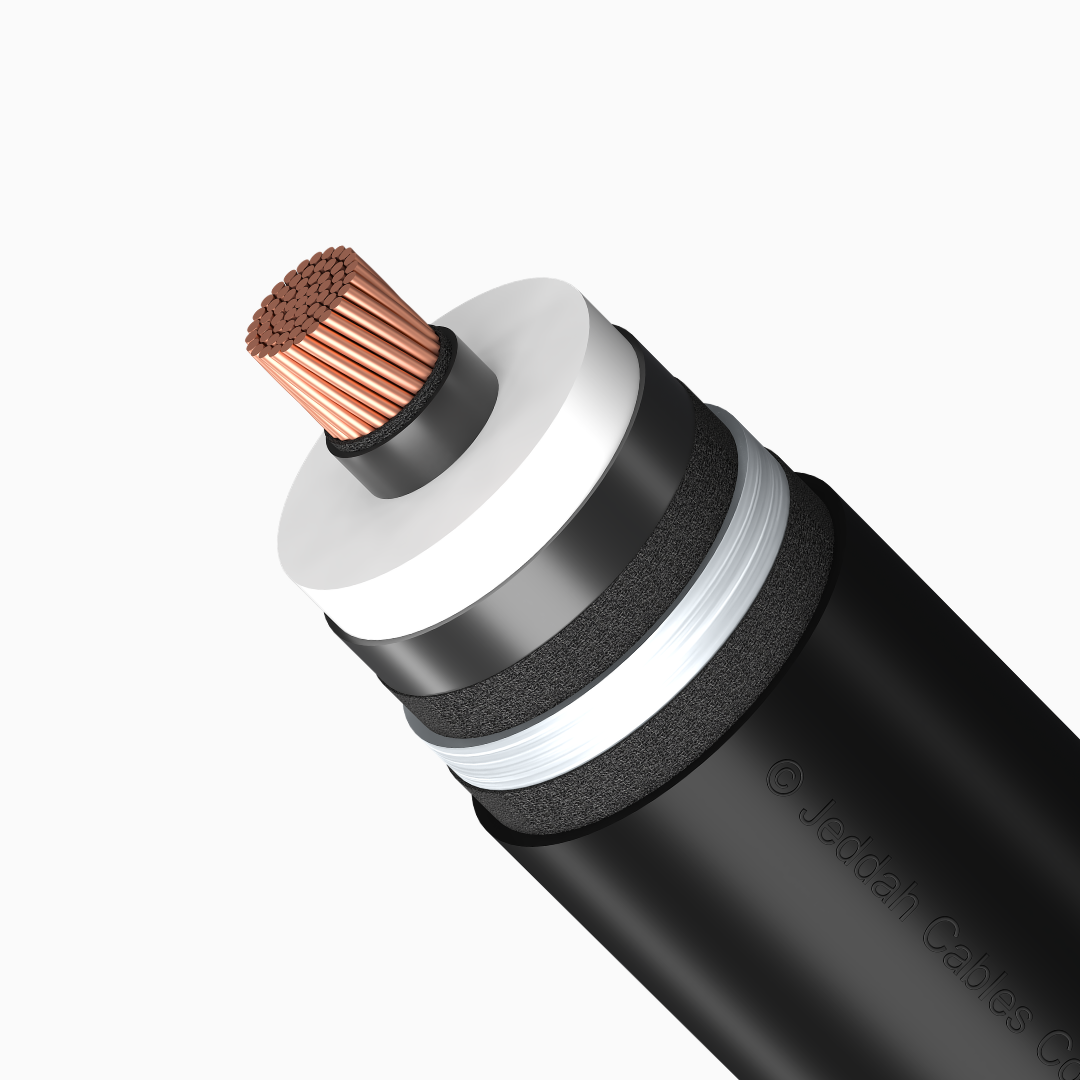

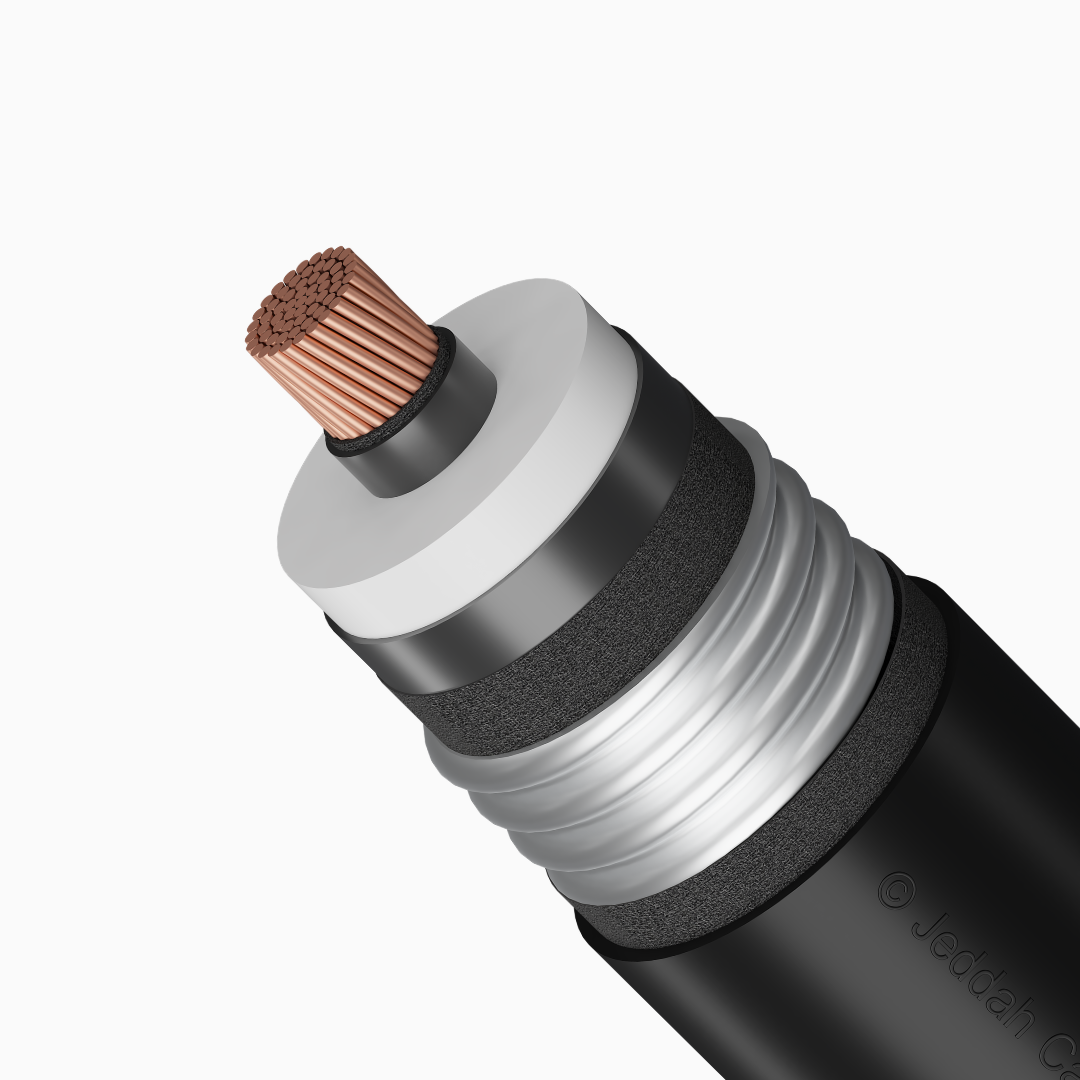

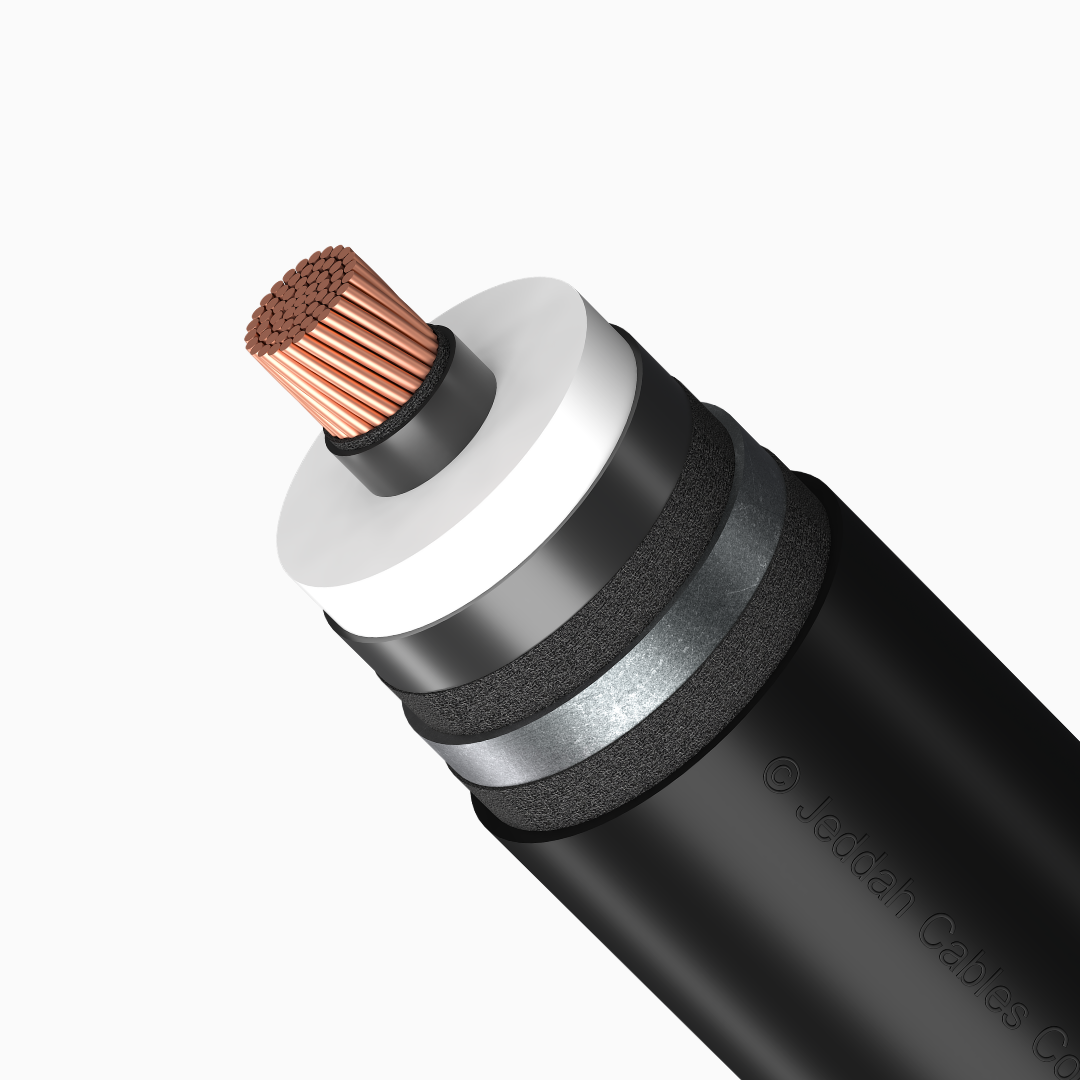

HV Cable — without Metallic Screen

Type:

CU / XLPE / SAS / HDPE  OR  CU / XLPE / CAS / HDPE

Size:

Up to 2500mm²

Rated Voltage:

Up to 500kV

Standard:

IEC 60502-1, BS 6387, IEC 60331-21

Conductor:

Soft Annealed Round Stranded Copper Wires

Insulation:

Cross-Linked Polyethylene XLPE

Metallic Sheath:

Smooth Aluminum Sheath (SAS) OR Corrugated Aluminum Sheath (CAS)

Jacketing:

High Density Polyethylene HDPE

Packing:

Returnable OR Non-Returnable Steel Drum
